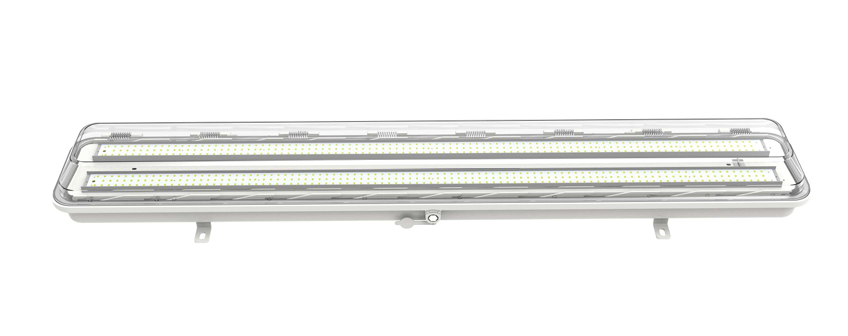

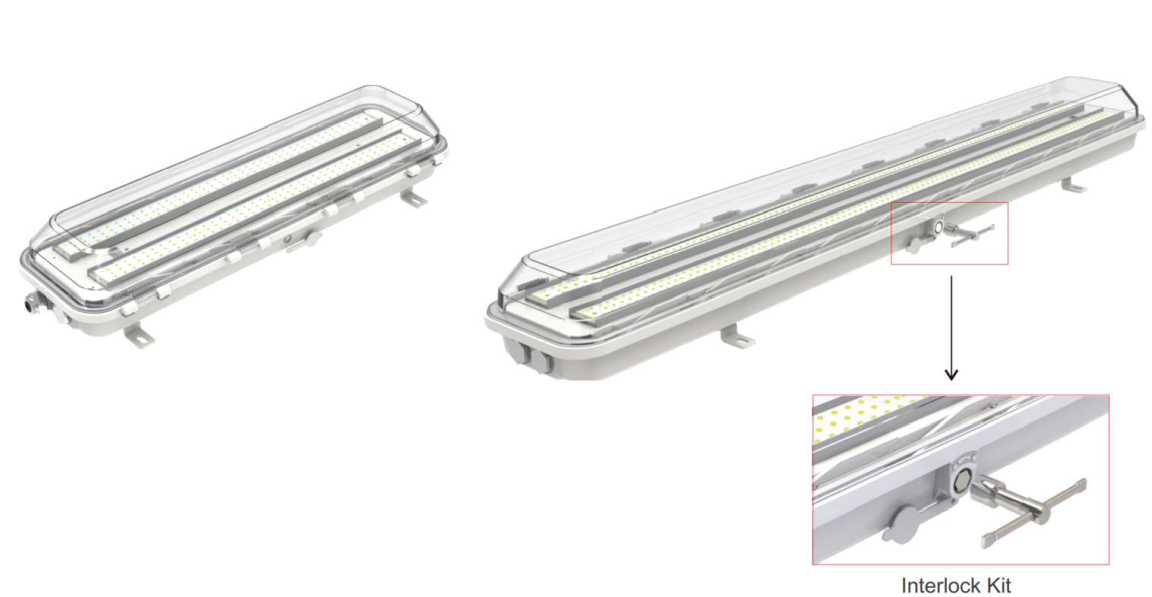

Lambda FortiLux Explosion Proof
The Lambda FortiLux Ex is a rugged and energy-efficient hazardous area linear light designed for demanding industrial, mining, and petrochemical environments. Built for reliable performance in harsh conditions, it delivers high-output illumination, long service life, and dependable operation with excellent resistance to dust, moisture, and hazardous site conditions.
Technical Specifications
| Voltage | AC120-277VAC, 50/60Hz |
|---|---|
| Wattage | 20W | 30W | 40W | 50W |
| Luminaire Efficacy(lm/W): | 125lm/W |
| IP Rating | IP66 |
| Colour Temperature | 4000K | 4000K | 6000K |
| CRI | >80 |
| Power Factor | >0.9 | ≥90% Driver Efficiency |
| IK Rating | IK10 3G - Vibration |
| L&B Rating | L80> 50 000hrs @55°C |
| Surge Protection | 4KV |
| Mounting | Ceiling, Rope, Pole |
| Lens Diffuser | Fiberglass-reinforced polycarbonate |
| Gasket | Silicone Rubber |
| Housing Color | Milky White |
| Ex Ratings | Ex db eb mb IIC T6/T5 Gb, Ex tb IIIC T80°C/T95°C Db |
| Dimming | 0-10V / Non Dim |
| Cable Entry | STD 4 x NPT3/4 | W/EM: 3 x NPT3/4 |
| Beam Angle | 120° |
Product Overview
Explosion Proof
Datasheet available
5
application areas
Need project-specific recommendations? Our team can help you choose the right solution.
Description

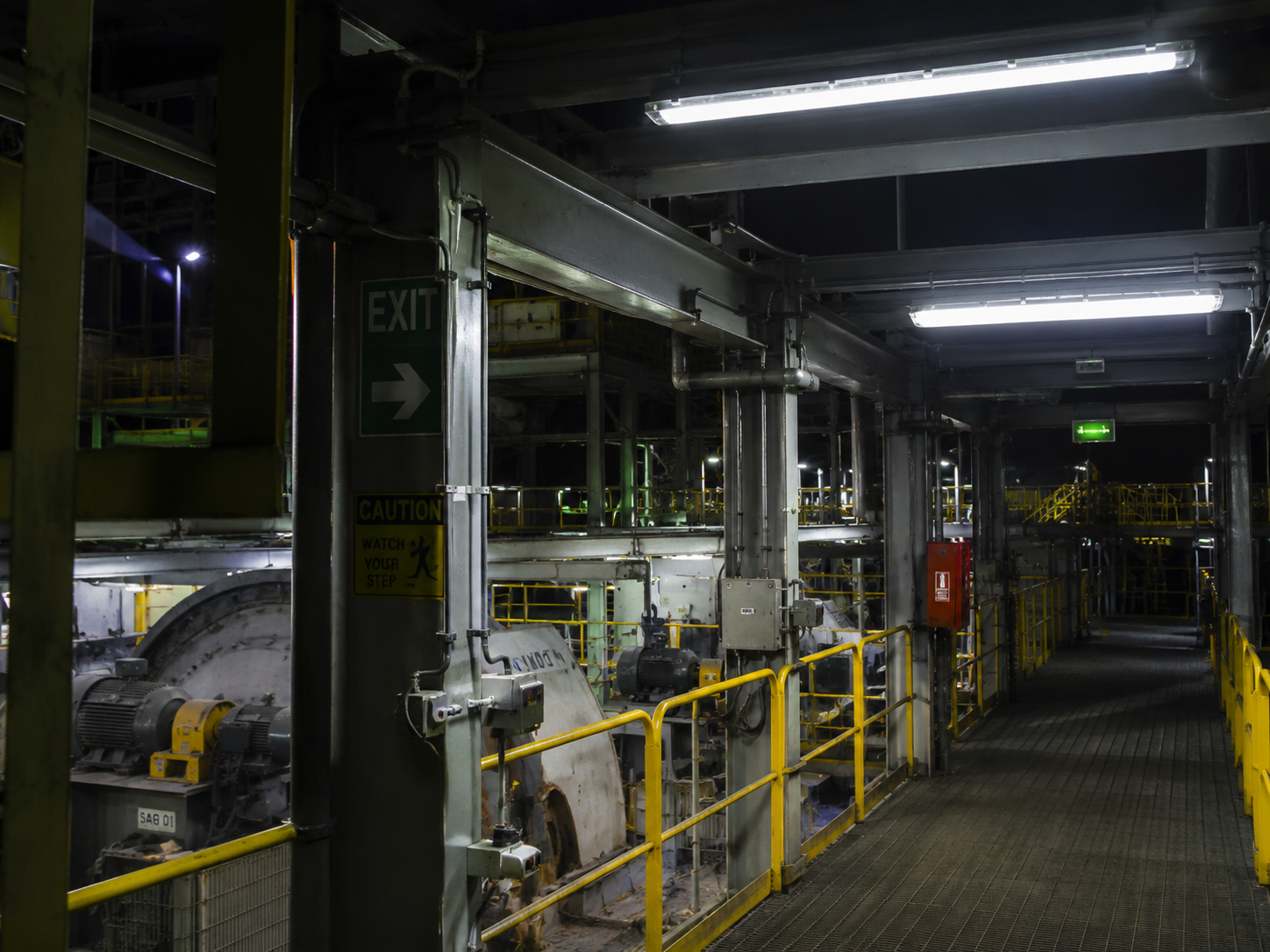

The Lambda FortiLux Ex linear vapour light is engineered for hazardous and demanding industrial environments where flammable gases, vapour, or combustible liquids may be present during normal operations. Combining advanced LED technology with a rugged, heavy-duty construction, the FortiLux Ex delivers reliable, high-performance illumination for mining, petrochemical, processing, and industrial facilities. Designed as an efficient replacement for traditional HPS and metal halide fittings, it offers improved energy efficiency, reduced maintenance requirements, and a faster return on investment. An optional integrated battery backup system provides up to 180 minutes of emergency operation during power failures, ensuring continued visibility and safety in critical areas.
